Proxy Management

Proxies are an integration mechanism that allows to adapt the data model between Kuwaiba and external applications. They act on behalf of the elements of the Kuwaiba inventory and represent an object structure within the application.

Figure 1 shows the structure of the module, where the proxies are organized in pools. A proxy pool can contain one or more proxies. In the example, proxy 3 is related to three inventory objects via the RELATED_TO_SPECIAL relationship, named hasProxy. Similarly, the router related to the proxy has two cards that are also associated with the same proxy. If at any time either card ceases to have a CHILD_OF relationship with the router, it will continue to belong to the proxy.

proxies_structure
Figure 1. Proxy management structure.

To access the module, click on the configuration icon configuration_icon located in the top menu of the screen. This will bring up a vertical menu where you can select the Proxy Management option, as seen in Figure 2.

access_module
Figure 2. Access to the proxy module.
proxies_module
Figure 3. Proxies module.

As mentioned above, proxies are grouped into pools. To manage existing pools, select the icon manage_pools. This will open a pop-up window similar to the one illustrated in Figure 4, where on the left side is the list of all available proxy pools. When selecting one of them, the information corresponding to the pool will be displayed on the right side.

manage_proxy_pools
Figure 4. Proxy pool management.
proxy_pools_information
Figure 5. Information from a pool of proxies.

In Figure 5 you can see the detailed information of a proxy pool, which includes the name, description and a list of the proxies belonging to that pool. To delete the selected pool, click the icon delete_proxy_pool_icon shown in the above Figure.

To create a proxy pool, I selected the button create_proxies_pool presented in Figure 4, where a new window appears requesting the name and a description of the new pool, as shown in Figure 6.

create_new_pool
Figure 6. Create new proxy pool.

In the box marked in Figure 3, the list of all existing proxies is initially displayed. You can filter the results using the search boxes located at the top of the box. The first search box allows you to filter the displayed proxies by the pool they belong to, the All Proxies option will list all proxies. You can type the name of the pool and the options will appear in a drop-down list or, you can extend the list using the icon proxies_pool_list, where all existing pools will appear for you to select one.

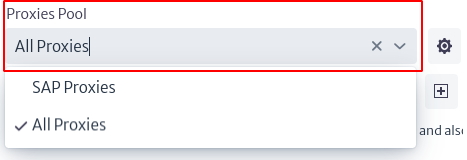

search_proxies_by_pool
Figure 7. Search for proxies by proxy pool.

The second search box, noted in Figure 8, allows you to filter the proxies in the current list by name.

search_proxies_by_name
Figure 8. Search for proxies by name.

To create a new proxy, select the icon create_proxy located in the main view of the module (Figure 3). When you do so, a window will appear asking for the new proxy's information, such as the pool it will belong to, the proxy's class and name.

create_proxy
Figure 9. Creation of new proxy.

Note The class to which the new pool will belong is a subclass of GenericProxy. Currently, there is only SAPProxy, but the user can add more by modifying the data model. For more information see chapter Data Model Manager.

To view proxy information, select the proxy of interest from the list of proxies shown in Figure 3. The corresponding information will appear on the right side of the screen, as shown in Figure 10.

proxy_information
Figure 10. Proxy information.

The general information of the proxy is indicated in Figure 10, where the name, the creation date of the proxy and its attributes can be found. These values can be modified by double clicking on the value of the property to be modified and then press enter to save the changes.

Additionally, in the upper right part there are some actions, which are detailed below:

proxy_actions
Figure 11. Actions associated with a proxy.

  • To delete a proxy, I selected the button delete_proxy.

  • You can relate the current proxy to a specific project by clicking on the button relate_to_project_icon, where a window like the one shown in Figure 12 appears, in which the user can choose the project to which the proxy will be related.

    relate_to_project
    Figure 12. Link proxy to a project.

  • To copy the proxy to another proxy pool, select copy_proxy where you can choose in which proxy pool you want to generate a copy of the current proxy.

    copy_project
    Figure 13. Copy proxy action.

  • The button move_proxy allows you to move the proxy to another existing proxy pool.

    move_project
    Figure 14. Move proxy action.

In the lower part of Figure 10, the inventory objects related to the selected proxy are listed, similar to how the projects associated with the proxy are displayed. In front of each object, three options are presented.

proxy_actions
Figure 15. Projects and inventory objects related to the proxy.

  • The icon dashboard opens a new tab showing the Object Options Panel related to the inventory object (See more in Object Options Panel).

  • To view additional information about the inventory object, select the button more_info which displays a window like the one shown below, indicating the object identifier, the class it belongs to and the object's containment path.

    object_information
    Figure 15. Additional Information on the object of the inventory.

  • The icon release_relationship removes the relationship between the current proxy and the object.

To relate an inventory object to an existing proxy, locate the object's Object Options Panel (which you can access through the Navigation module) and select the advanced action named Relate to Proxy, as indicated in Figure 16. A window will then open in which you can search for the proxy of interest. When you click the OK button, the proxy will be linked to the object.

advanced_action
Figure 16. Advanced action to relate to proxy.
relate_object
Figure 17. Relate object to proxy.
